Eziblank Modular Wall
Asun Bajracharya January 29, 2021
Eziblank Modular Wall

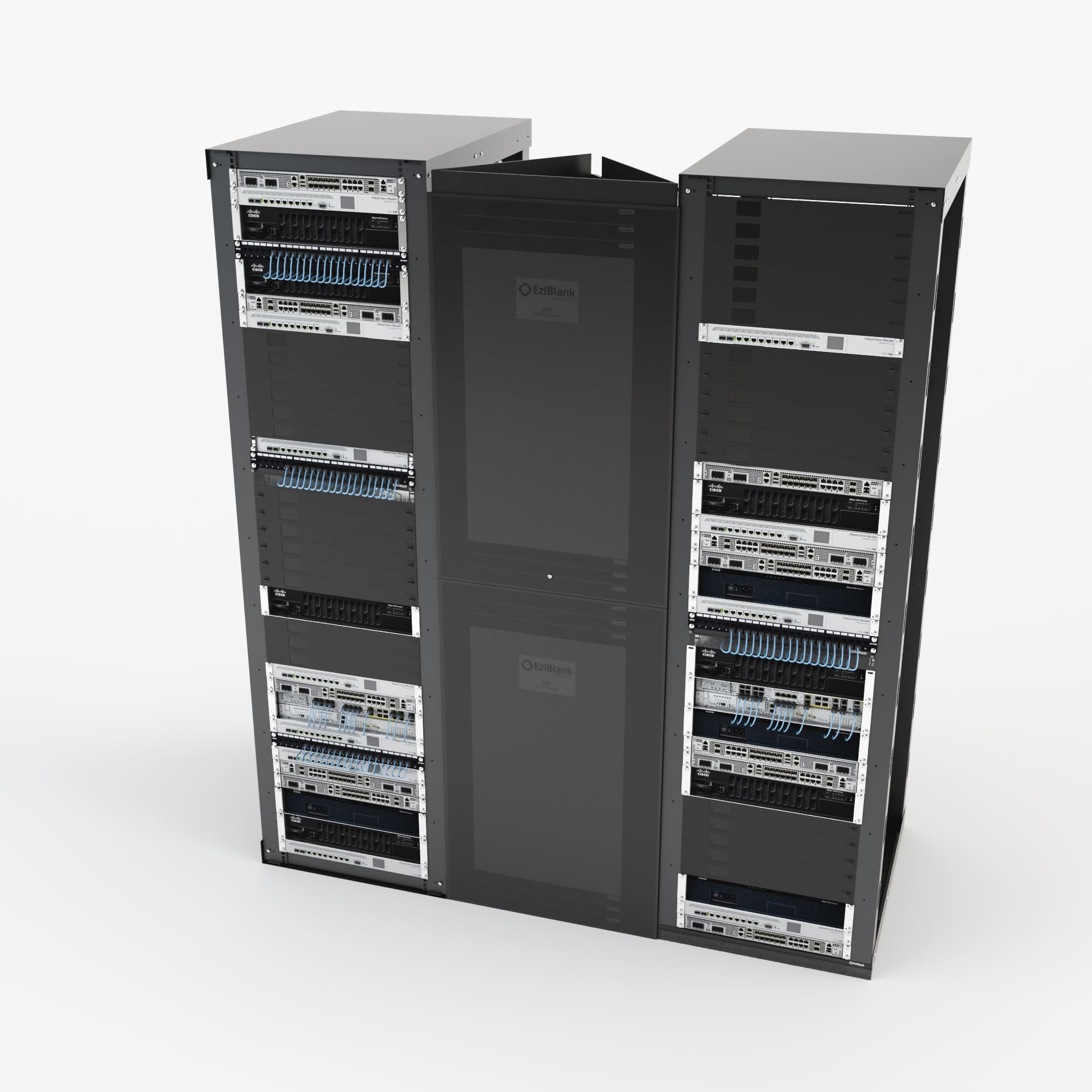

- A stable rack-sized air flow barrier that can be positioned anywhere.

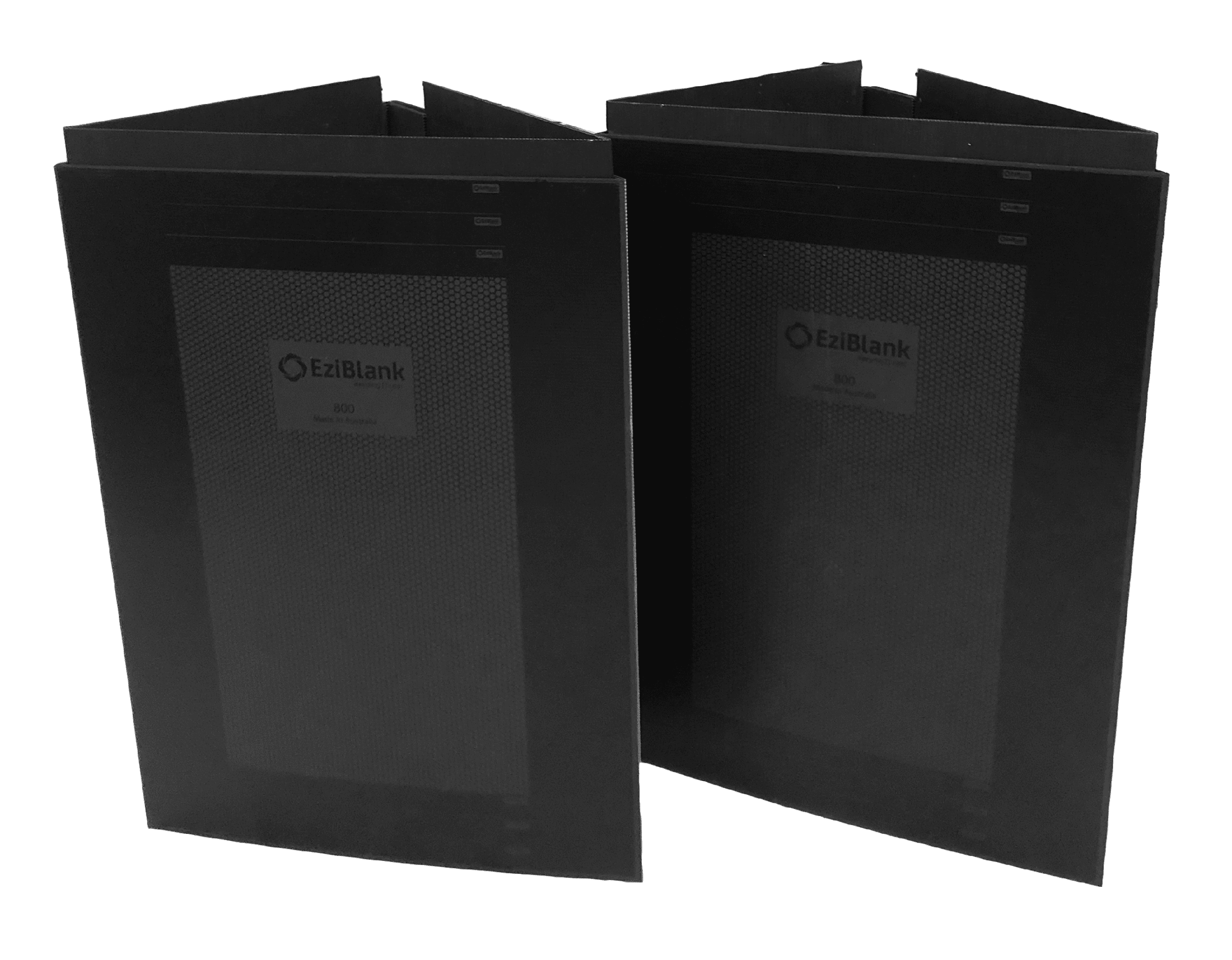

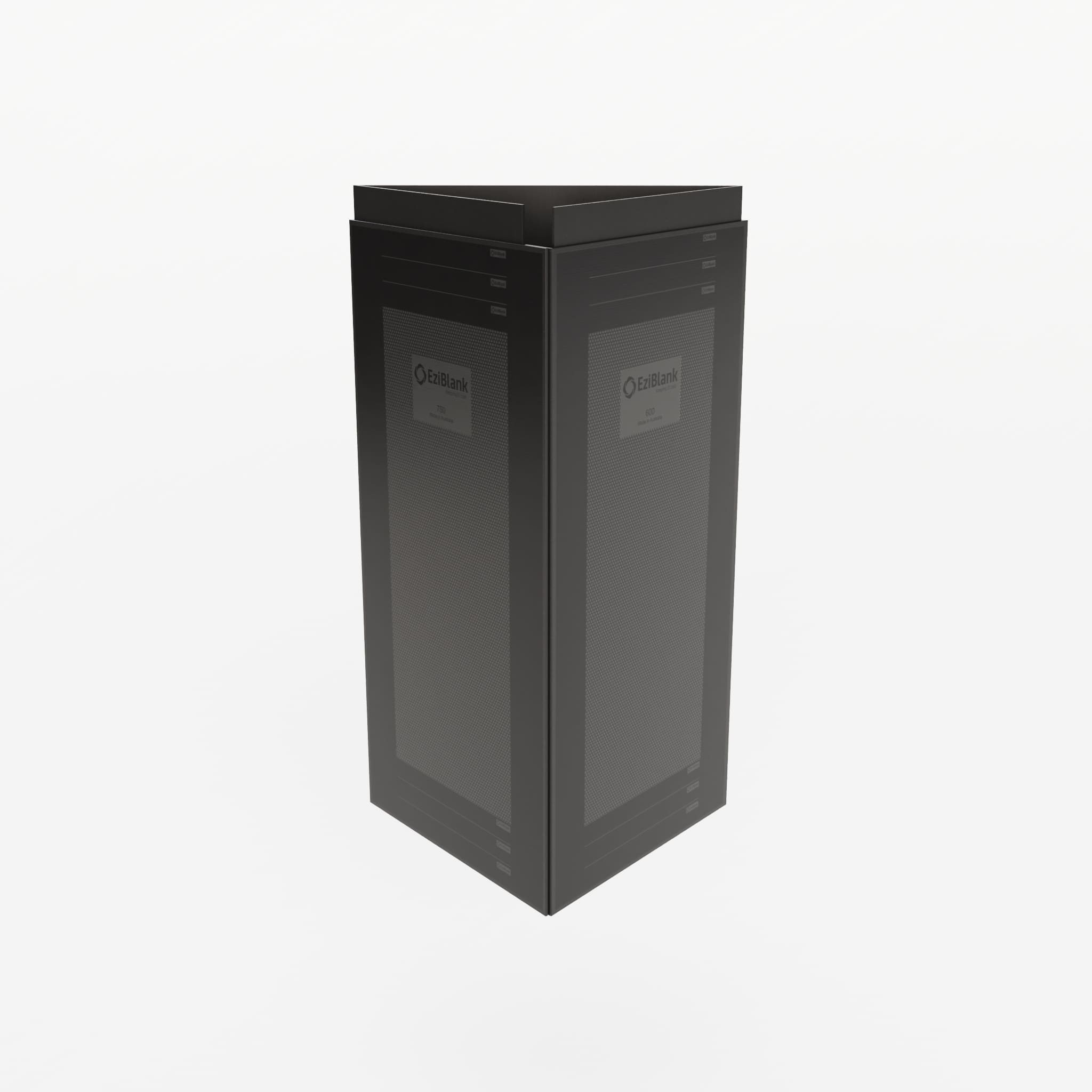

- Quick to assemble from flat sheet into strong triangular structure.
- Suits various rack spaces up to 46RU high and 600 / 750 / 800mm wide.
- Prevents hot air recirculation in a hot or cold containment aisle.

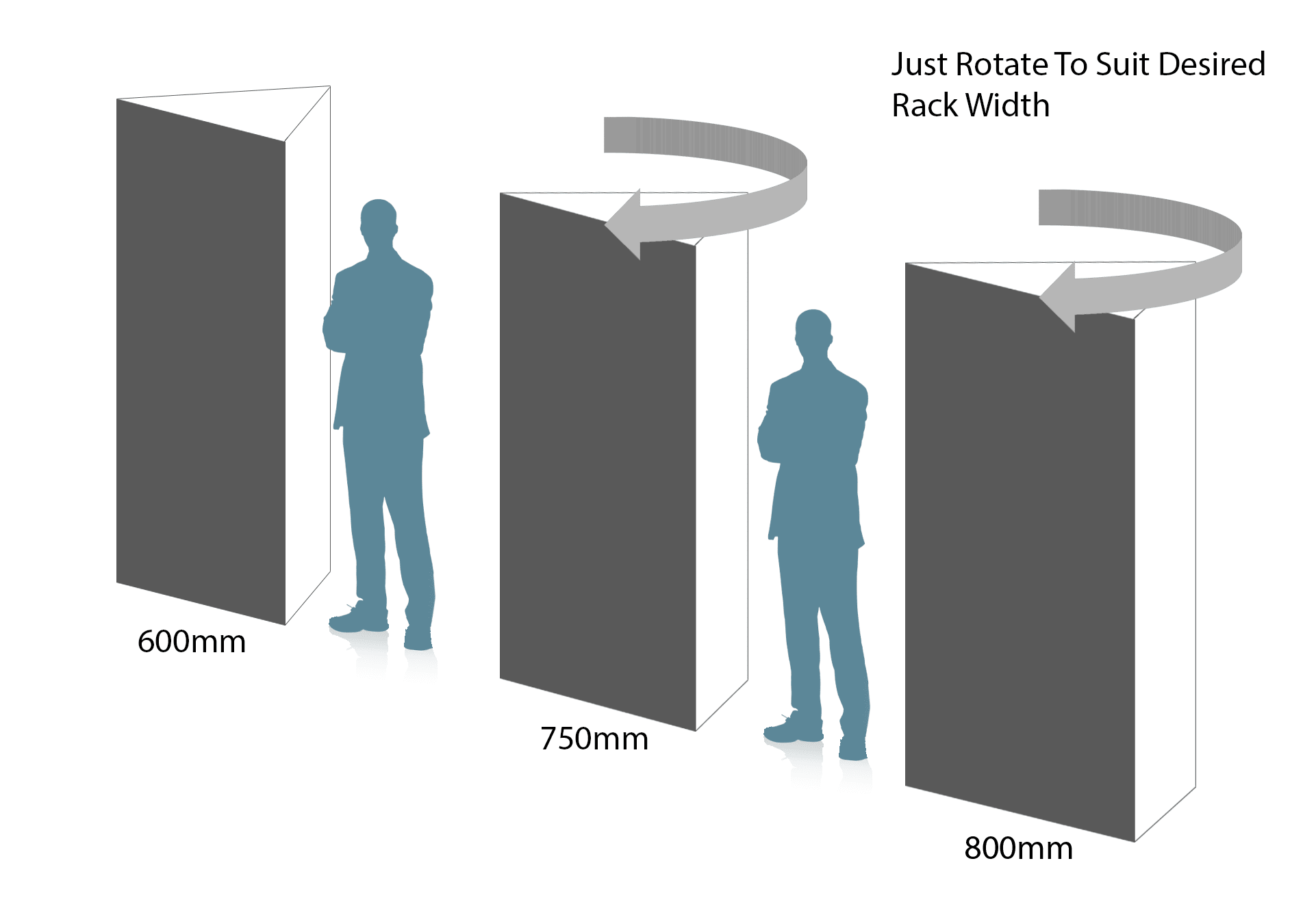

- 3 Sizes in one. Simply “rotate” to obtain correct rack width.
Cost effective way to maintain important airflow dynamics within a Data Centre.

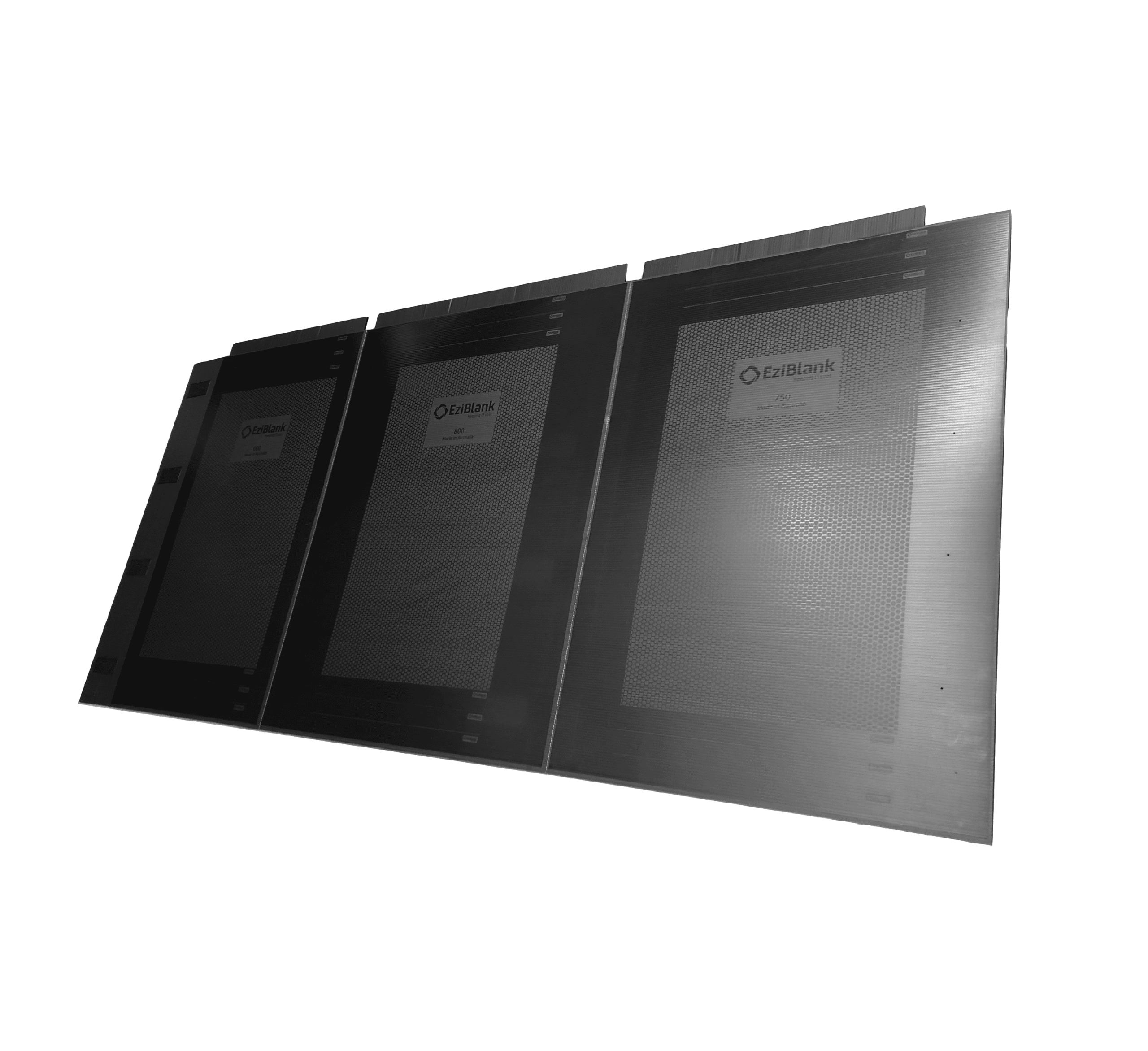

EziBlank® Modular Wall replacement racks are assembled in minutes, creating a stable rack sized airflow barrier, that can be positioned anywhere and re-used again and again. Assembled from a flat sheet, EZIBLANK® Modular Wall panels build quickly into a strong, stable triangular structure. Each individual rack consists of 2 sheets of 2310mm x 1090mm.
Safety Information: EziBlank Modular Wall is a temporary structure designed as a temporary, removable rack substitute panel for hot/cold aisle air flow management in data centre. The product is not to be used as weight bearing structure under any circumstances and EziBlank will not be responsible for any damage or injury caused by incorrect use of the product. Please refer to EziBlank Safety Information Sheet for more information.
Note: For Modular Wall Extension installation, Cutter Tool (EZWCTTL01) can be used to cut the Modular Wall. See the installation instruction document for more details.
| Title | Type | Size | |
|---|---|---|---|
|
EziBlank Wall Safety Information Sheet v1 | application/pdf | 161 KB |
|
|
2020-08-0038 EziBlank Modular Wall Rev 1 | application/pdf | 1 MB |
|
|
Modular_Wall_Installation_Instruction_21-04-2023_combined_v3-2 | application/pdf | 6 MB |
Specifications
Dimensions: 2310 x 1090 (mm) x 2
Shipping Dimensions: 1100 x 900 x 50 (mm)
Weight: 7 kg per Pack of 2
Material: Flame retardant , impact resistant, water resistant, twin walled polypropylene sheet 6mm
Available
Colour: Black
