Additional information

Weight N/A
Dimensions N/A
Select Variant

Sub-Rack Flexible Brush Panel – 605mm, Sub-Rack Flexible Brush Panel – 800mm, Floor Flex Brush Panel (Custom Cut)

Specs

Dimensions: 605 x 85 x 8 (1 Brush Panel, in mm)
Weight:  450g each
Material:  Body:  Thermoplastic rubber (TPE/TPV) / Bristle:  PA6/FH black 0.20mm

Dimensions:  800 x 80 x 11 (1 Brush Panel, in mm)
Weight: 450g each
Material:  Body:  Thermoplastic rubber (TPE/TPV) / Bristle: PA6/FH black 0.20mm

Standards:  EIA-310-D
Environmental:  RoHS
Toxicity:  Non toxic and resistant to chemicals, Low Smoke, Zero Halogen
Flammability:  Body: UL-94 HB
Bristle:  UL-94 V0

Please refer to datasheet for detailed specifications.

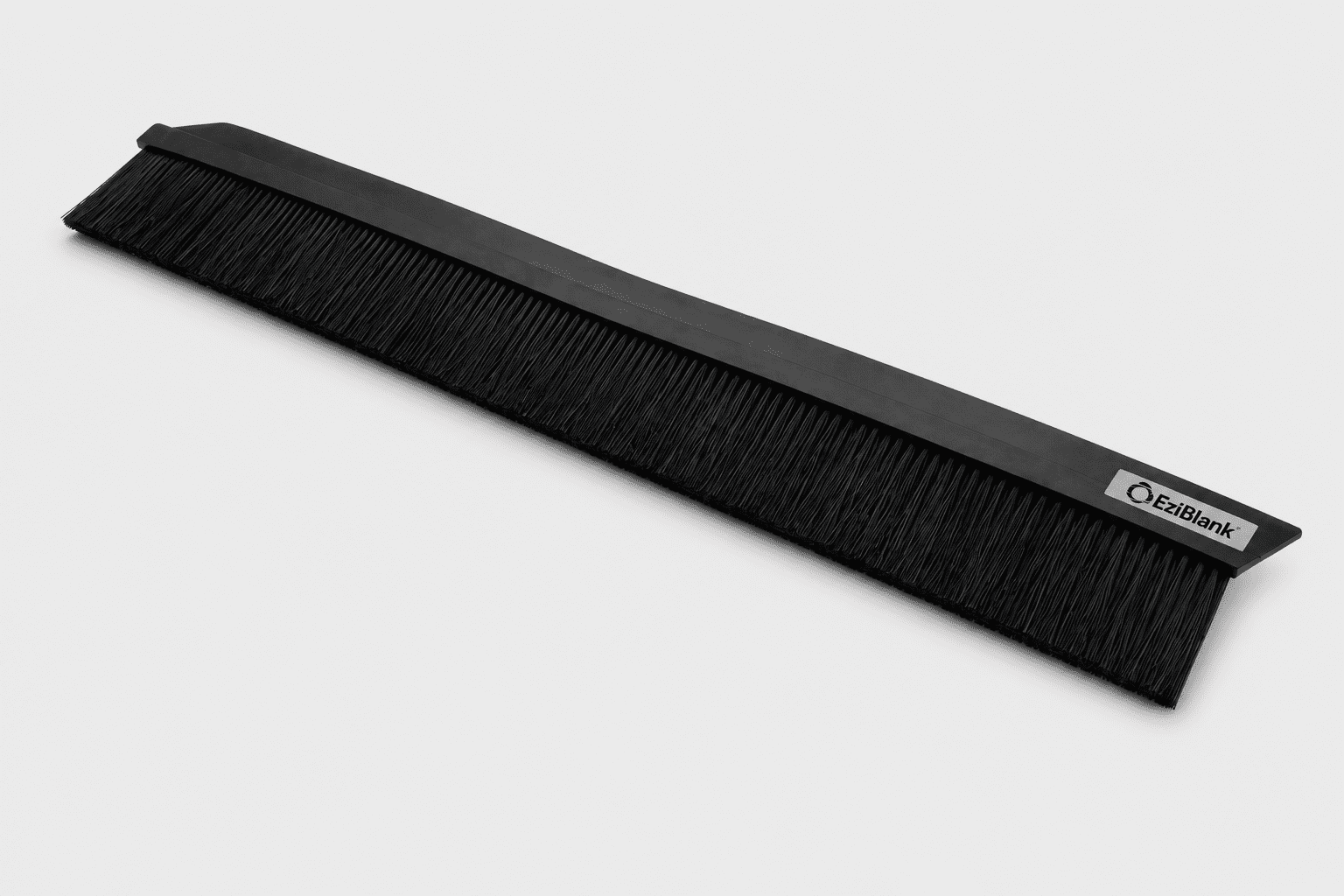

Flex Brush

EziBlank® Flex Brush panels are designed for retrofitting onto existing rack cabinet to effectively seal the bottom cavity of a rack cabinet. The non-intrusive design allows the brush panel to be installed anywhere to block unwanted air flowing.

Brush panels can be secured to the rack surface using industrial strength magnetic strips or high quality industrial adhesive double-sided tape. Self-taping screws can be used for extra fixing.

Engineered and manufactured in Germany with the highest quality of materials and precision, EziBlank® Flex Brush panel meets the most demanding requirement in mission-critical facilities.

  • Blocks unwanted airflow blowing through air gaps.
  • Open-ended design for direct fitting onto existing installations.
  • UL-94 V0 compliant flame retardant plastic that meets the most demanding requirement.
  • Robust lightweight construction that is strong and flexible.
  • German-engineered and produced brush panels with the highest quality materials and precision.

Flex Brush panels come in 2 ready to go lengths:

    • EZBRFLEXSUB605 (605mm)
    • EZBRFLEXSUB800 (800mm)

EziBlank® can also create custom lengths to suit your requirements.

Get A Quote


SKU: EZBRFLEX Category:
